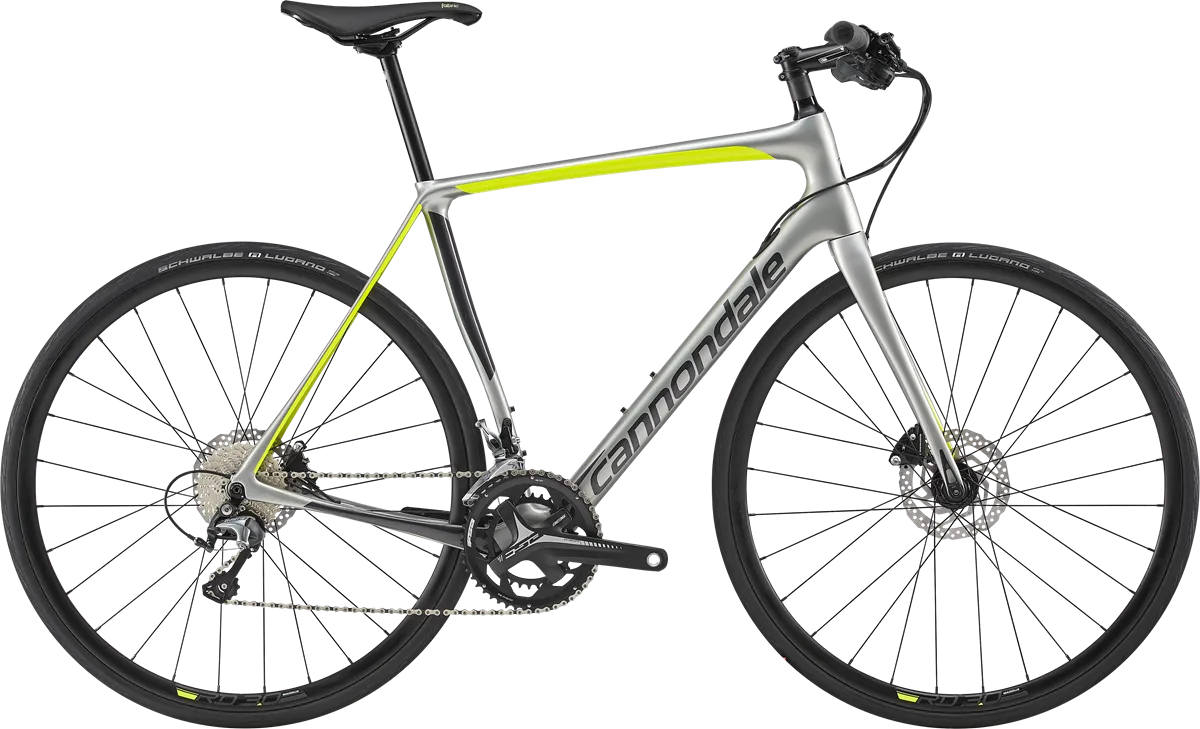

The speed and handling of our award-winning Synapse road bike, with the comfort and control of a more upright riding position makes Synapse Flat Bar the ultimate high-performance fitness machine.
| Frame: | Synapse Disc Asymmetric, Carbon, Di2 ready, SAVE, BB30a, flat mount, 12mm thru axle |
|---|---|
| Fork: | Synapse Disc Asymmetric, Carbon, SAVE, integrated crown race, 12x100mm thru-axle (S/M): 1-1/8” - 1-1/4” tapered steerer, 55mm rake, (L/XL): 1-1/8” - 1-3/8” tapered steerer, 45mm rake |
| Crank: | FSA Omega Alloy, 48/32 |
| Shifters: | Shimano Tiagra FB, 2x10 |
| Headset: | Synapse Si, 25mm Alloy top cap |
| Wheelset: | RD 3.0, 28h |
| Seatpost: | Cannondale C3, 6061 Alloy, 25.4 x 350mm (44-56), 400mm (58-61) |
| Stem: | Cannondale C3, 6061 Alloy, 31.8, 7° |
|---|---|
| Handlebars: | Cannondale C3 Flat, 6061 Alloy, 10° back, 3° rise |
| Saddle: | Fabric Scoop Radius Sport, steel rails |
| Cassette: | Shimano HG500, 11-32, 10-speed |
| Brakes: | Shimano MT200 hydro disc, 160/160mm RT26 rotors |
| Tires: | Schwalbe Lugano, K-Guard, 700 x 28c |
All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.
For all warranty claims, please contact our Warranty Team at . So that we can help you in a timely manner, make sure to include the following:
- 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
- 2. Brief description of the claim
- 3. Photographs
- 4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
- • Any part of a product that has been installed, altered, repaired, or misused
- • Damage from unintended style of riding, abuse, neglect, accident, and racing
- • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
- • Failure to provide regular maintenance of any product
Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.
Note: Warranty is for original owner only.
